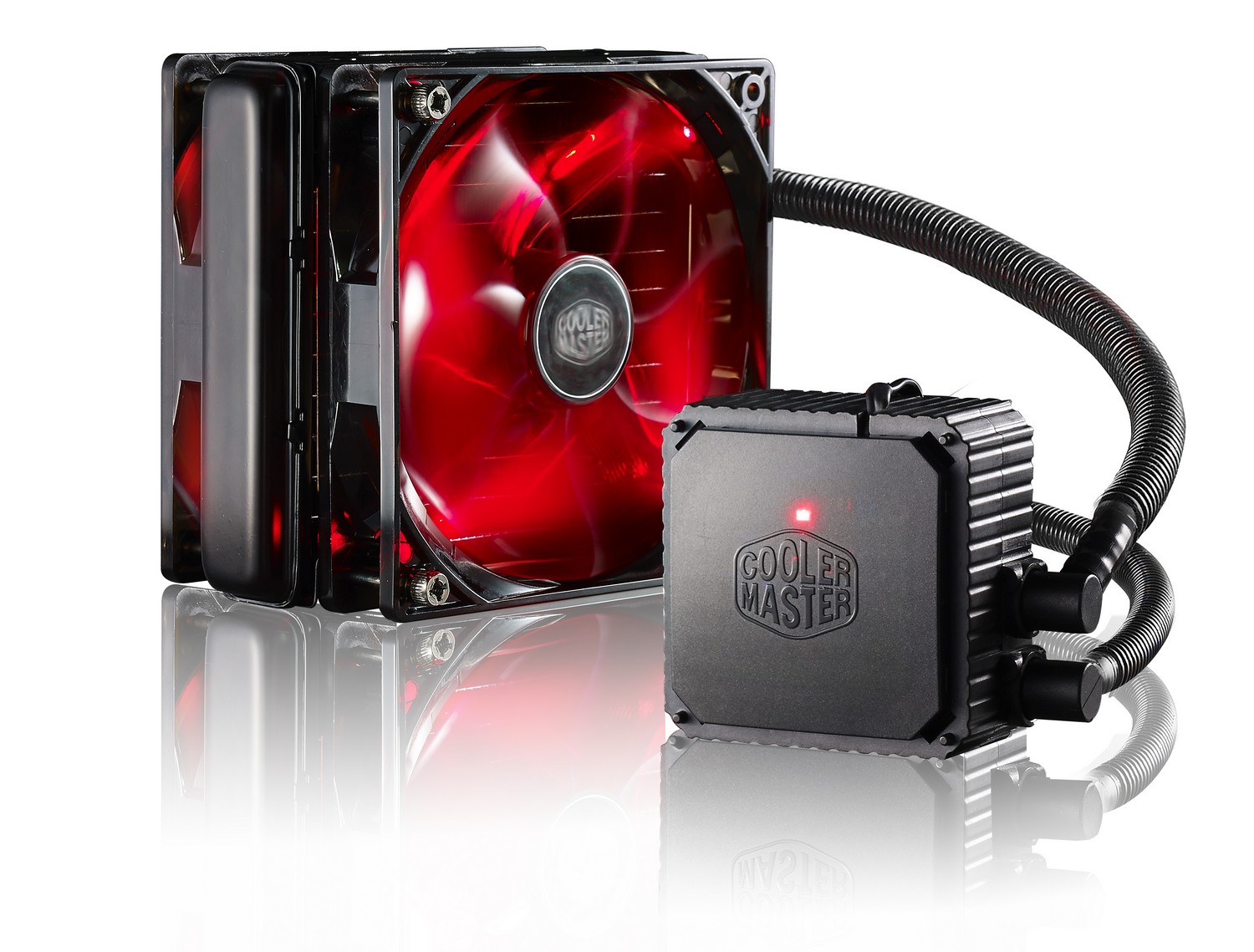

The Seidon 120V V3 Plus is the latest AIO watercooler that boasts an excellent value for performance. The compact 120mm radiator fits in virtually every case. Thanks to double XtraFlo fans, Seidon can unleash a powerful cooling storm at your command. Durable FEP Tubing provides the advantages of nearly no moisture absorption, high thermal stability and high pressure tolerance which all contribute to a long operating life.
| Model number |
RL-S12V-22PR-R1 |
| CPU Socket |
Intel®
LGA 2066 / 2011-3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775
AMD
AM4* / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 |
| Waterblock Dimensions (LxWxH) |
62(L) x 62(W) x 36.4(H) mm |
| Radiator Dimensions (LxWxH) |
154(L) x 119(W) x 27(H) mm |
| Radiator Material |
Aluminum (Radiator)

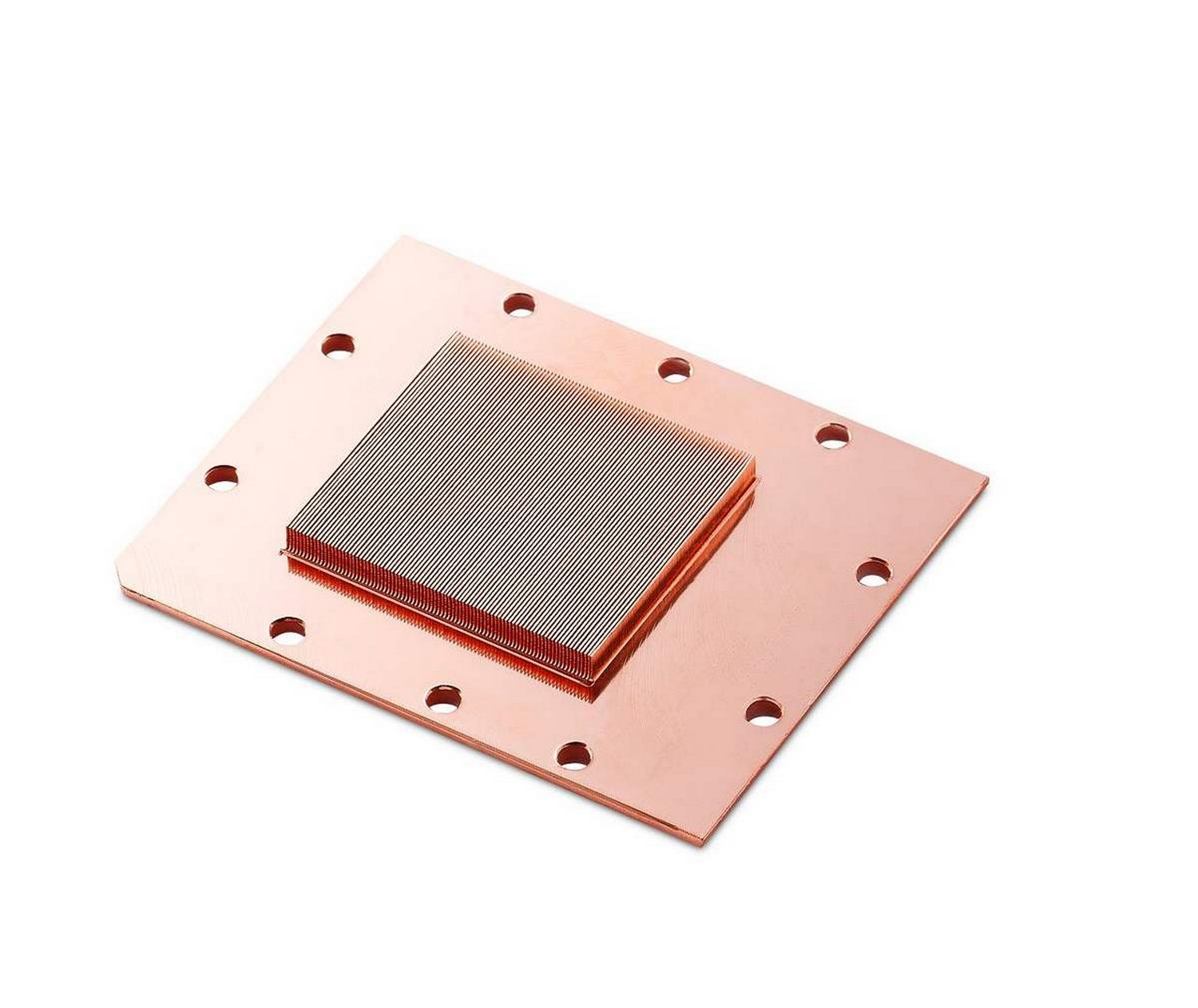

Copper (Baseplate)
FEP (Tubing) |
| Tube Lenght |
315mm |
| Tube Diameter |
ø 5.8mm |

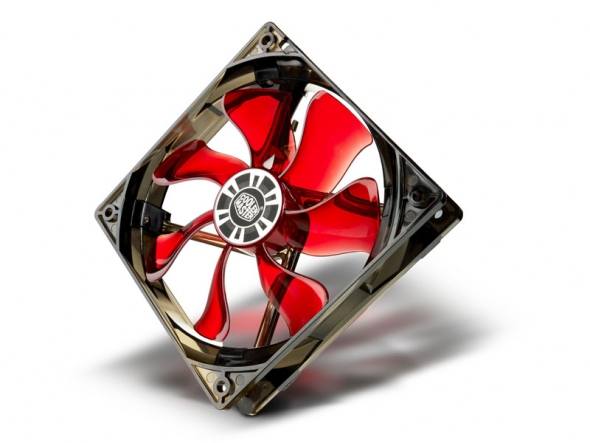

| Fan |
|
| Fan Dimensions (LxWxH) |
120(L) x 120(W) x 25(H) mm |
| Fan Speed |
800-2,200 RPM ± 10% |
| Fan Airflow |
36-86 CFM ± 10% |
| Fan Air Pressure |
0.41-2.87 mmH2O ± 10% |
| Fan Life Expectancy |
40,000 hrs |
| Fan Noise Level (dBA) |
20-39 dBA |
| Fan Bearing Type |
Rifle Bearing |
| Fan Connector |
4-Pin (PWM) |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.5 A |
| Fan Power Consumption |
6 W |
| Fan Weight |
158g |
| Pump |
|
| Pump Life Expectancy |
70,000 hrs |
| Pump Noise Level |
<23 dBA |
| Pump Rated Voltage |
12 V |
| Pump Rated Current |
0.3 A |
| Pump Power Consumption |
3.6 W |
| Warranty |
2 years |
| EAN Code |
4719512052716 |
| UPC Code |
884102028823 |
| Note |
*AMD AM4 upgrade kit needed, please visit: AMD AM4 Ryzen Compatibility |
