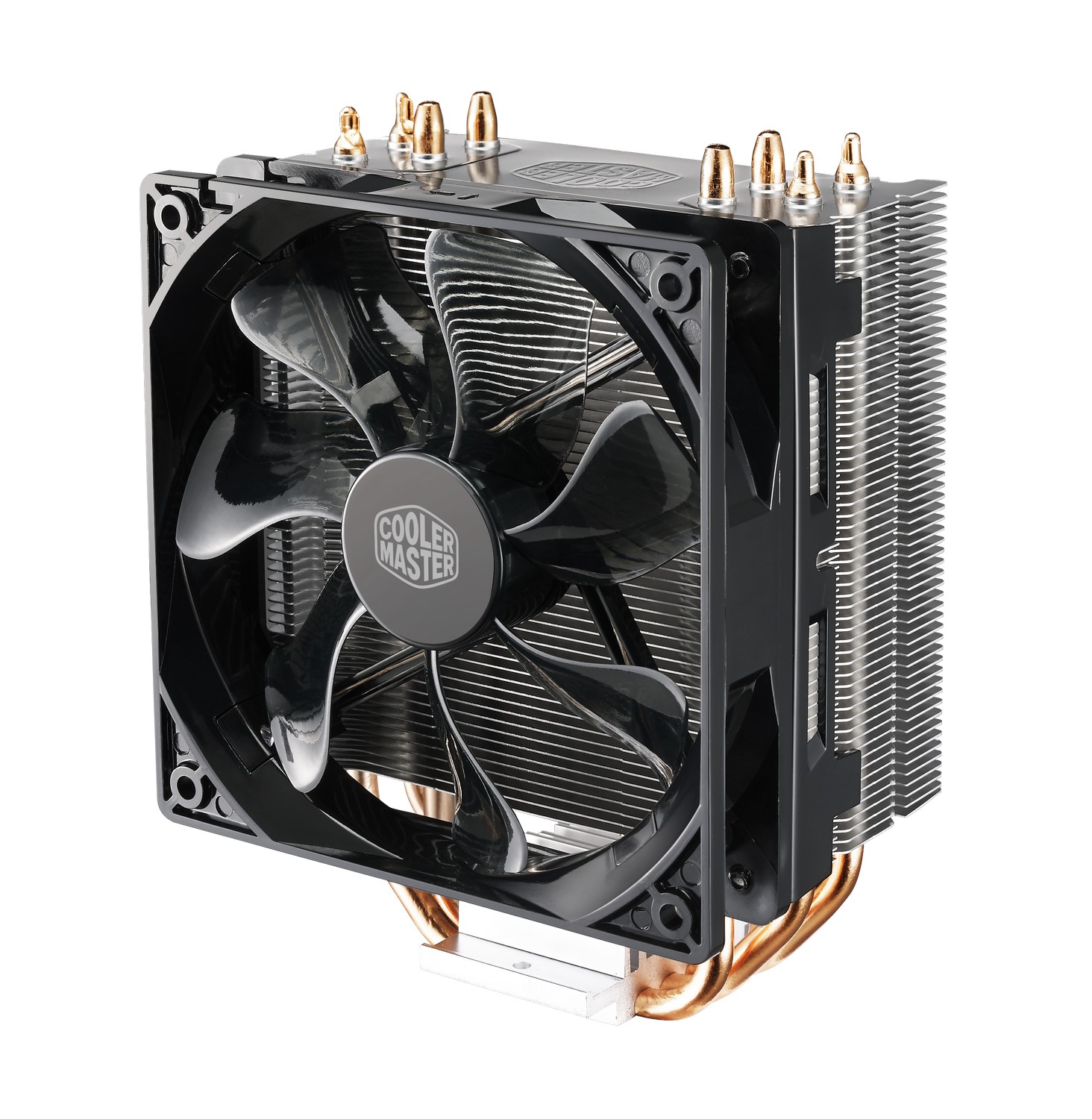

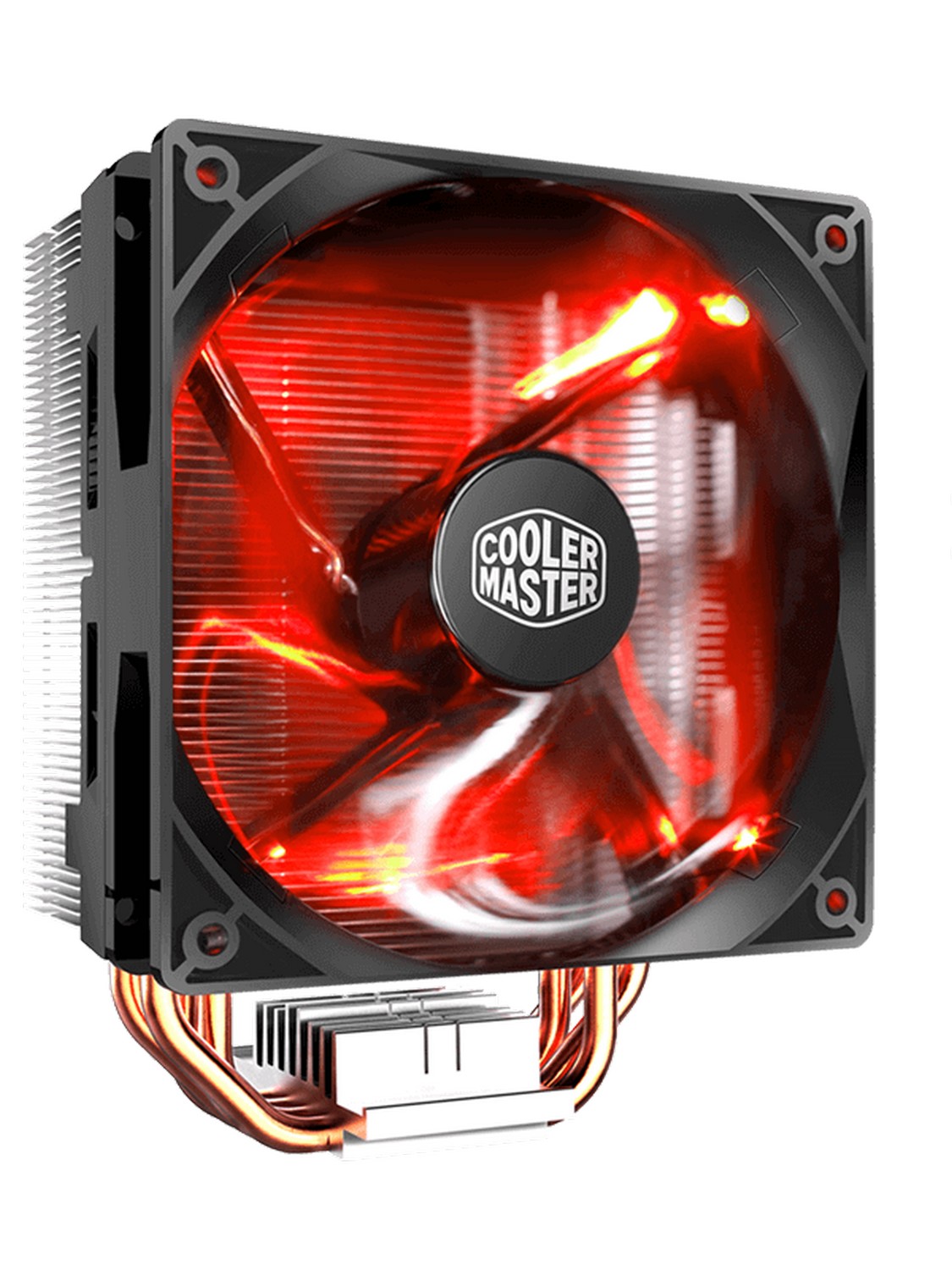

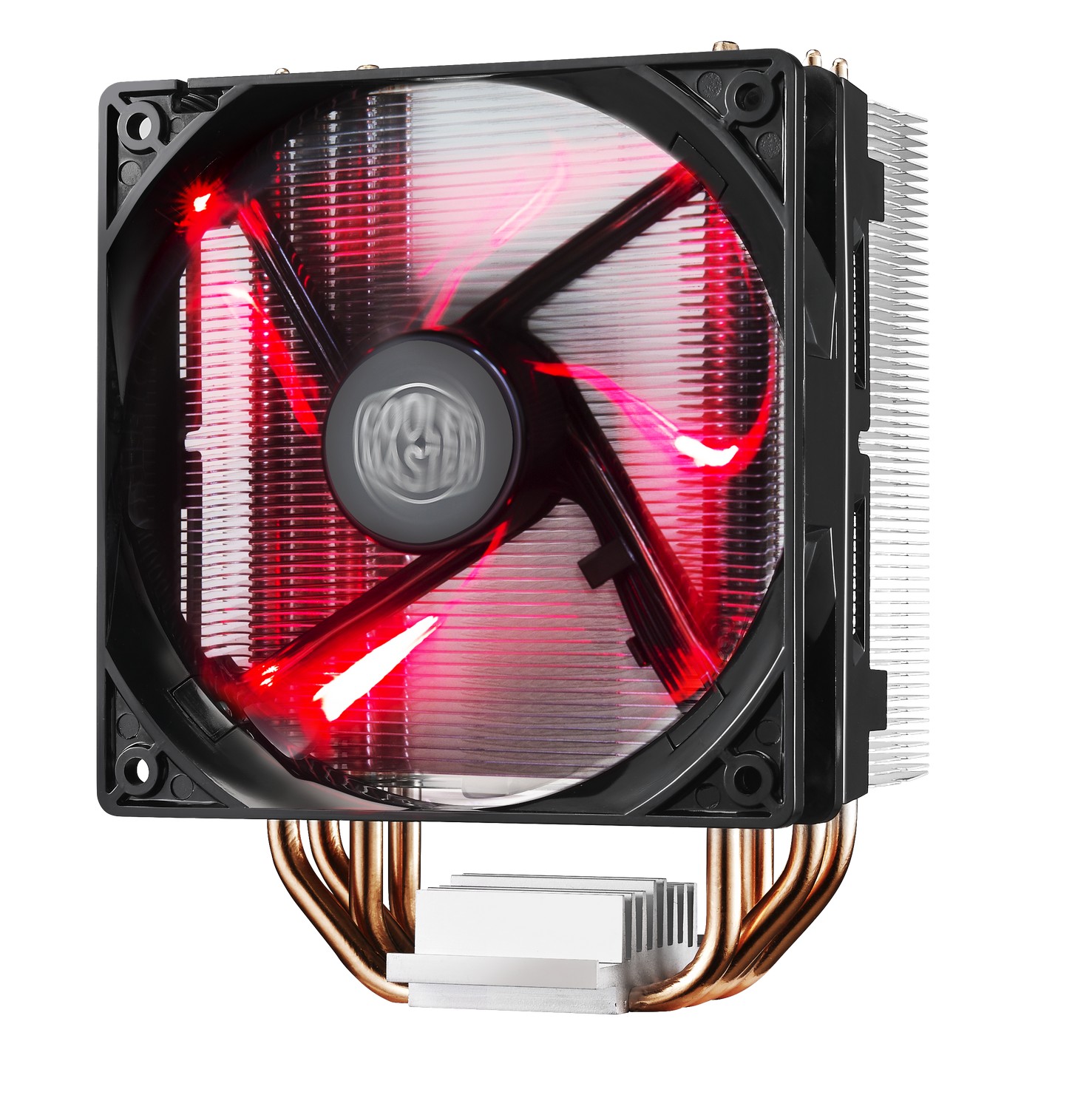

PWM Fan with RED LED, 4 direct contact heat pipes. Universal Mounting for all Intel and AMD platforms
Hyper 212 LED is equipped with PWM Fan with red LEDs and provides the best airflow and static pressure to take the heat away. And four direct contact heat pipes with funnel shaped aluminum fins provide the optimized CPU coolers for great performance. Moreover, the improved universal bracket designs ensure easy and worry free installation on all platforms.
| Model number |
RR-212L-16PR-R1 |
| CPU Socket |
Intel®
LGA 2066 / 2011-3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775
AMD
AM4* / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 |
| Dimensions (LxWxH) |
120(L) x 84(W) x 160(H) mm |
| Heat Sink Dimensions (LxWxH) |
116(L) x 60(W) x 160(H) mm |
| Heat Sink Material |
Aluminum (Fins)
Copper (Heatpipes) |
| Heat Sink Weight |
468g |
| Heat Pipes Diameter |
ø 6mm |
| Fan |
|
| Fan Dimensions (LxWxH) |
120(L) x 120(W) x 25(H) mm |
| Fan Speed |
600-1,600 RPM ± 10% |
| Fan Airflow |
66.3 CFM ± 10% |
| Fan Air Pressure |
1.7 mmH2O ± 10% |
| Fan Life Expectancy |
280,000 hrs |
| Fan Noise Level (dBA) |
9-31 dBA |
| Fan Bearing Type |
Rifle Bearing |
| Fan Connector |
4-Pin (PWM) |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.19 A |
| Fan Power Consumption |
2.28 W |
| Fan Weight |
166g |
| Warranty |
2 years |
| EAN Code |
4719512053379 |
| UPC Code |
884102029486 |
| Note |
Due to mechanical limitations, AM4 upgrade kit is only supported by the Hyper 212 LED_AM4 compatible version. To find out your existing cooler’s compatibility, please check here. |
